Textured Perforated Gravel Grid Soil Stabilizer Driveway HDPE Geocell 50mm-300mm Height Preventing Landslide And Load
Geocell Material is the three dimensional structure formed by high strength HDPE or PP copolymer broadband through strong welding or riveting process. The Geocell Material can scale freely, shrink and fold up when transported, open when used and fill with earth, stone or concrete, etc. It can form a structure with strong lateral restriction and stiffness in the HDPE geocell slope protection project. Geocell Material can be used as a cushion layer to deal with weak foundation to increase the bearing capacity of foundation, or it can be laid on slope surface to form geocell slope protection structure, and it can also be used to build support and block structure.
The Main Function of Geocell Material
Used to stabilize road and railway subgrade.
Used for embankment and shallow water channel treatment with load bearing capacity.
Used retaining wall for preventing landslide and load.
When soft foundation is encountered, the use of HDPE Geocell Material can greatly reduce the construction labor intensity, reduce the thickness of roadbed construction speed, good performance, and greatly reduce the project cost.
3D Honeycomb Road Geocell Different Types :
Based on Surface Texture
Smooth Geocells:
Characterized by a smooth surface, these are often used in applications
where reduced friction with the soil is desired.
Textured Geocells:
Feature a textured surface to enhance frictional resistance and soil-geocell interaction,
providing better soil confinement and stability.
Based on Perforation
Non-perforated Geocells:
Offer higher strength and are used in applications requiring greater structural support.
Perforated Geocells:
Allow for water and air passage, which is beneficial in certain erosion control and soil stabilization projects where drainage is a key requirement.
HDPE GEOCELLS FOR Gruound Stabilisation
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement;working platforms in intermodal ports; airport runways.
HDPE GEOCELLS FOR Retaining Wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls)
for steep faces, walls and irregular topography

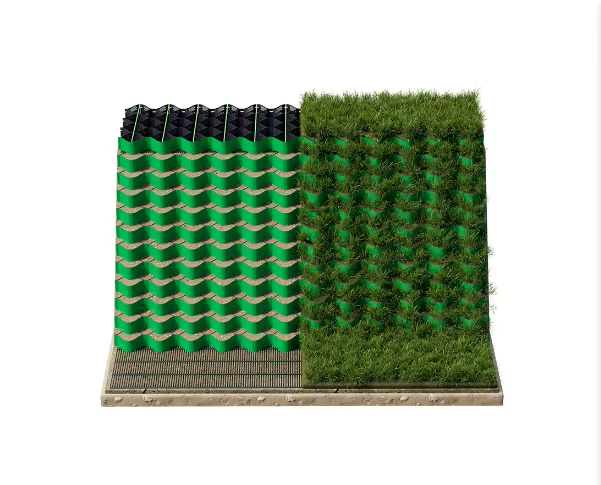

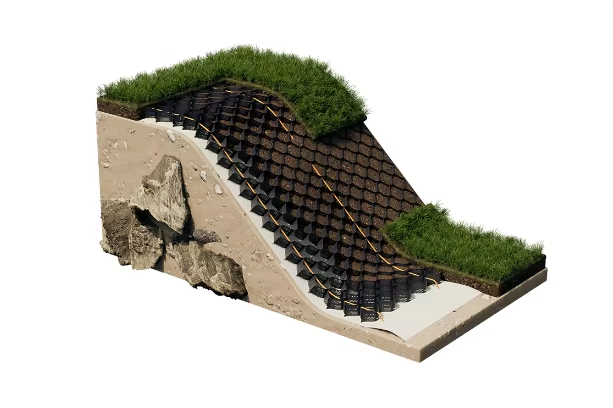

Slope Pretection Plastic Geocells
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

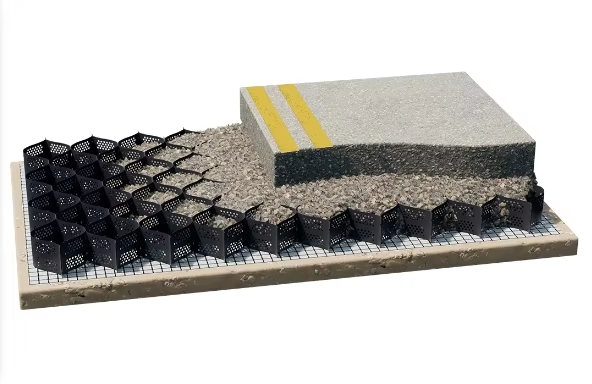

Load Support Plastic Geocells
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.
Road Construction Geocell Geocell Retaining Walls
Slope Protection Geocell Channel Protection Geocell
Plastic HDPE Geocell Technical parameter:
Seam Peel Strength
Definition:
This refers to the strength of the weld between the geocell panels.
Classification:
Higher seam peel strengths are desirable, indicating a more robust and durable product. Manufacturers list these strengths as key specifications for their products, such as ≥1000 N, ≥1500 N, or ≥2000 N.
Geocell supporting installation tools
1.Butterfly key for quicker connection of HDPE gecell sections
2.Anchor & stake clip for geocell
Welcome to contact with Yixing Shenzhou HDPE GEOCELL
Email : amelie@geogrid.cn
Whatsapp : 0086 13815119816
